ISP CLI
The CLI (Command line interface) allows the users to give instructions to some computer program or to the operating system through a line of simple text.
Specificaly, the ISP-CLI, that will be the name we are going to give to the Krill's CLI, wil allow us to manage the different modules that we hire as well as asking questions and permform basic actions in them. For example, if we have the gpon service in our Krill, through this tool, we will be able to see the metrics of an OLT's pon or even force the provision or restart of a cpe.
CLI access
First, we will iniciate our terminal and we will access the server through SSH. To do so we will have to enter the following line if we are using Ubuntu or Mac: ssh ispadmin@XXX.XXX.XXX.XXX -p 4222.
Where:
ispadminKrill server's access user.XXX.XXX.XXX.XXXrefers to the server's IP.-p 4222the access port (we will usually use 4222). Instead of using the IP, we could also use the dns, xyz.phicus.es, where xyz are the letters used to identify the customer.
Once this is done, we should get into the management panel ISP-CLI, that will look like this:
ispadmin@lab3.phicus.es >
TIP

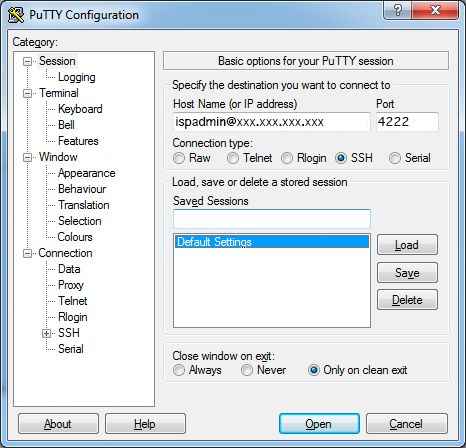

If the access is done using Windows, an access interface, like the console PuTTY (https://www.putty.org/), must be used.
Once we are in the server with the user “ispadmin”, the 'tab' key could be used to look at the different options available, with which different requests or actions could be executed in our Krill:
ispadmin@lab3.phicus.es >
core fail2ban ping telnet tv
dhcp ghn radius tr069 wimax
exit gpon ssh traceroute
Core Tools
core devices print
It allows us to get a list of all the core devices that are responding through SNMP to see the condition of its interfaces, tags, etc.
ispadmin@lab3.phicus.es > core devices print
boards...
entities...
MKT-OFICINA 192.168.15.1 ut:24944131
loc:CEEIM mdl:RB1100 dscr:RouterOS RB1200
* id type name alias admn oper speed in_bw out_bw in_disc ou_disc in_err ou_err
* 1 eth ether7-wan2 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 2 eth ether8 Laboratorio up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 3 eth ether6-wan1 WAN Ceeim up up 1000 0.0 0.0 0.00 0.00 0.00 0.00
* 4 eth ether5-lan3 lab up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 5 eth ether4-service up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 6 eth ether3-service up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 7 eth ether2-service --> WIFI Unifi up up 1000 0.0 0.0 0.00 0.00 0.00 0.00
* 8 eth ether1-service -> SW Catalyst up up 100 0.0 0.0 0.00 0.00 0.00 0.00
* 9 eth ether10-boot Consola up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 10 eth ether9-lan2 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 12 bridge bridge1-lan bridge-lan up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 16 bridge loopback up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 20 bridge bridge2-lab up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 22 bridge bridge-new up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 23 l2vlan vlan200 up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 38 l2vlan vlan1100 up up 100 0.0 0.0 0.00 0.00 0.00 0.00
* 47 l2vlan ether1.vlan2500 up up 100 0.0 0.0 0.00 0.00 0.00 0.00
* 55 bridge bridge-wan up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 56 l2vlan ether8-lan1.vlan142 LABORATORIO up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 57 l2vlan ether8.vlan831 PREKRILL-HSI up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 58 l2vlan ether8.vlan832 PREKRILL-TV up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 59 l2vlan ether8.vlan833 PREKRILL-MGNT up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 60 l2vlan ether8.vlan834 PREKRILL-VOIP up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 61 l2vlan ether8.vlan931 DEMOKRILL-HSI up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 62 l2vlan ether8.vlan777 IPTV up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 63 l2vlan ether8.vlan933 DEMOKRILL-MGNT up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 65 l2vlan ether8.vlan1100 LAB-HSI up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 66 l2vlan ether8.vlan1301 LAB-MGNT up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 67 l2vlan ether8.vlan1400 LAB-VOIP up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 68 l2vlan ether8.vlan601 LAB-VOIP up up 10 0.0 0.0 0.00 0.00 0.00 0.00
boards...
entities...
MK-ROUTER-LAB 172.16.142.1 ut:24944131
loc:HQs mdl:CCR1036 dscr:RouterOS RB1200
* id type name alias admn oper speed in_bw out_bw in_disc ou_disc in_err ou_err
* 1 eth ether7-wan2 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 2 eth ether8 Laboratorio up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 3 eth ether6-wan1 WAN Ceeim up up 1000 0.0 0.0 0.00 0.00 0.00 0.00
* 4 eth ether5-lan3 lab up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 5 eth ether4-service up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 6 eth ether3-service up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 7 eth ether2-service --> WIFI Unifi up up 1000 0.0 0.0 0.00 0.00 0.00 0.00
* 8 eth ether1-service -> SW Catalyst up up 100 0.0 0.0 0.00 0.00 0.00 0.00
* 9 eth ether10-boot Consola up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 10 eth ether9-lan2 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 12 bridge bridge1-lan bridge-lan up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 16 bridge loopback up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 20 bridge bridge2-lab up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 22 bridge bridge-new up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 23 l2vlan vlan200 up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 38 l2vlan vlan1100 up up 100 0.0 0.0 0.00 0.00 0.00 0.00
* 47 l2vlan ether1.vlan2500 up up 100 0.0 0.0 0.00 0.00 0.00 0.00
* 55 bridge bridge-wan up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 56 l2vlan ether8-lan1.vlan142 LABORATORIO up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 57 l2vlan ether8.vlan831 PREKRILL-HSI up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 58 l2vlan ether8.vlan832 PREKRILL-TV up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 59 l2vlan ether8.vlan833 PREKRILL-MGNT up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 60 l2vlan ether8.vlan834 PREKRILL-VOIP up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 61 l2vlan ether8.vlan931 DEMOKRILL-HSI up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 62 l2vlan ether8.vlan777 IPTV up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 63 l2vlan ether8.vlan933 DEMOKRILL-MGNT up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 65 l2vlan ether8.vlan1100 LAB-HSI up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 66 l2vlan ether8.vlan1301 LAB-MGNT up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 67 l2vlan ether8.vlan1400 LAB-VOIP up up 10 0.0 0.0 0.00 0.00 0.00 0.00
* 68 l2vlan ether8.vlan601 LAB-VOIP up up 10 0.0 0.0 0.00 0.00 0.00 0.00
core devices [HOST_NAME] print
It allows us to see the information of a certain device's interfaces.
ispadmin@lab3.phicus.es > core device MK-ROUTER-LAB print
MK-ROUTER-LAB 172.16.142.1 ut:24944309
loc:HQs mdl:CCR1036 dscr:RouterOS RB1200
* id type name alias admn oper speed in_bw out_bw in_disc ou_disc in_err ou_err
* 1 eth ether7-wan2 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 2 eth ether8 Laboratorio up up 10 8.3K 7.6K 0.00 0.00 0.00 0.00
* 3 eth ether6-wan1 WAN Ceeim up up 1000 9.9M 9.3M 0.00 0.00 0.00 0.00
* 4 eth ether5-lan3 lab up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 5 eth ether4-service up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 6 eth ether3-service up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 7 eth ether2-service --> WIFI Unifi up up 1000 71.9K 111.3K 0.00 0.00 0.00 0.00
* 8 eth ether1-service -> SW Catalyst up up 100 79.8K 864.2K 0.00 0.00 0.00 0.00
* 9 eth ether10-boot Consola up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 10 eth ether9-lan2 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 12 bridge bridge1-lan bridge-lan up up 0 132.7K 1.0M 0.00 0.00 0.00 0.00
* 16 bridge loopback up up 0 0.0 193.0 0.00 0.00 0.00 0.00
* 20 bridge bridge2-lab up up 0 0.0 0.0 0.00 0.00 0.00 0.00
* 22 bridge bridge-new up up 0 0.0 44.3 0.00 0.00 0.00 0.00
* 23 l2vlan vlan200 up up 0 0.0 135.4 0.00 0.00 0.00 0.00
* 38 l2vlan vlan1100 up up 100 0.0 140.3 0.00 0.00 0.00 0.00
* 47 l2vlan ether1.vlan2500 up up 100 0.0 138.2 0.00 0.00 0.00 0.00
* 55 bridge bridge-wan up up 0 10.2M 9.6M 0.00 0.00 0.00 0.00
* 56 l2vlan ether8-lan1.vlan142 LABORATORIO up up 10 6.6K 6.5K 0.00 0.00 0.00 0.00
* 57 l2vlan ether8.vlan831 PREKRILL-HSI up up 10 0.0 50.3 0.00 0.00 0.00 0.00
* 58 l2vlan ether8.vlan832 PREKRILL-TV up up 10 0.0 45.7 0.00 0.00 0.00 0.00
* 59 l2vlan ether8.vlan833 PREKRILL-MGNT up up 10 2.5 50.3 0.00 0.00 0.00 0.00
* 60 l2vlan ether8.vlan834 PREKRILL-VOIP up up 10 0.0 45.7 0.00 0.00 0.00 0.00
* 61 l2vlan ether8.vlan931 DEMOKRILL-HSI up up 10 0.0 45.7 0.00 0.00 0.00 0.00
* 62 l2vlan ether8.vlan777 IPTV up up 10 0.0 45.7 0.00 0.00 0.00 0.00
* 63 l2vlan ether8.vlan933 DEMOKRILL-MGNT up up 10 2.5 50.3 0.00 0.00 0.00 0.00
* 65 l2vlan ether8.vlan1100 LAB-HSI up up 10 179.9 68.3 0.00 0.00 0.00 0.00
* 66 l2vlan ether8.vlan1301 LAB-MGNT up up 10 0.0 50.6 0.00 0.00 0.00 0.00
* 67 l2vlan ether8.vlan1400 LAB-VOIP up up 10 0.0 46.0 0.00 0.00 0.00 0.00
* 68 l2vlan ether8.vlan601 LAB-VOIP up up 10 748.1 362.7 0.00 0.00 0.00 0.00
core ptps print
It allows us to list the information of all the ptps, signal, frequency, etc.
ispadmin@lab3.phicus.es > core ptps print
* name short dista lcpu rcpu dnfreq dnch dnmod dntx dnrx0 dnrx1 dncapac dna dnqua upfre upch upmod uptx uprx0 uprx1 upcapac upa upqua dnbw upbw
*Oficina-Casa LUM - 0.0 0.0 - - - - -120 -120 0.0 0 100 - - - - 0.0 0.0 0.0 0 100 0.0 0.0
*Oficina-Monte LUM - 0.0 0.0 - - - - -120 -120 0.0 0 100 - - - - 0.0 0.0 0.0 0 100 0.0 0.0
core ptp [HOST_NAME] print
It allows us to see the IPs, signal, frequencies of a certain ptp model.
ispadmin@lab3.phicus.es > core ptp Oficina-Casa print
process_rawdata
defaultdict(<class 'list'>, {})
do_check_llanspeed................ <class 'krill_core.ptp.saf.lumina.Lumina'>
name : Oficina-Casa
model : CFIPLumina
laddress : 192.168.202.10 laddress=192.168.202.10
lrunmodel : unknown model
lversion : - lversion=-
luptime : 0 no luptime
lcpu : 0.0 lcpu=0
llanspeed : - llanspeed=-
raddress : 192.168.202.11 raddress=192.168.202.11
rrunmodel : unknown model
rversion : - rversion=-
ruptime : 0 no ruptime
rcpu : 0.0 rcpu=0
rlanspeed : - rlanspeed=-
distance : none
dnfreq : none
dnchan : None dnchan=None
dntx : none
dnrx0 : -120 dnrx0=-120.0dBm below min(-111dBm)
dnrx1 : -120 dnrx1=-120.0dBm below min(-111dBm)
dnmod : -
dncapacity : 0.0 dncapacity=0Mbps below min(1Mbps)
dnquality : 100 dnquality=100
upfreq : none
upchan : none
uptx : none
uprx0 : 0.0 uprx0=0.0dBm
uprx1 : 0.0 uprx1=0.0dBm
upmod : none
upcapacity : 0.0 upcapacity=0Mbps below min(1Mbps)
upquality : 100 upquality=100
dnmse : 0.0 dnmse=0.0 above max(-1)
upmse : 0.0 upmse=0.0 above max(-1)
dnbw : none
upbw : none
custom : dnldpcdecoderstress=0.0 upldpcdecoderstress=0.0
dnairtime : 0 dnairtime=0.0%
upairtime : 0 upairtime=0.0%
dnmse : 0.0 dnmse=0.0 above max(-1)
upmse : 0.0 upmse=0.0 above max(-1)
message : dncapacity=0Mbps below min(1Mbps) dnmse=0.0 above max(-1) dnrx0=-120.0dBm below min(-111dBm) dnrx1=-120.0dBm below min(-111dBm) unknown model unknown model upcapacity=0Mbps below min(1Mbps) upmse=0.0 above max(-1)
core location [location] print
It allows us to see the different core devices in a certain location.
ispadmin@lab3.phicus.es > core location CENTRAL print
SW-CENTRAL 172.26.128.20 ut:5742547
loc:OLOT mdl:ES-16-XG dscr:EdgeSwitch 16 XG, 1.9.3, Linux 3.6.5, 1.0.0.4872137
* id type name alias admn oper speed in_bw out_bw in_disc ou_disc in_err ou_err
* 1 eth 0/1 CENTRAL up up 10000 630.7M 1.8G 0.00 0.00 0.00 0.00
* 2 eth 0/2 OFICINA up up 10000 1.9G 615.1M 0.00 0.00 0.00 0.00
* 3 eth 0/3 FIBRA up up 1000 9.2M 53.4M 0.00 0.00 0.00 0.00
* 4 eth 0/4 up down 10000 0.0 0.0 0.00 0.00 0.00 0.00
* 5 eth 0/5 OLT2 up down 10000 0.0 0.0 0.00 0.00 0.00 0.00
* 6 eth 0/6 OLT1 up down 10000 0.0 0.0 0.00 0.00 0.00 0.00
* 7 eth 0/7 AP-Casa1 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 8 eth 0/8 AP-Casa2 up down 1000 0.0 0.0 0.00 0.00 0.00 0.00
* 9 eth 0/9 OLT4 up down 10000 0.0 0.0 0.00 0.00 0.00 0.00
* 10 eth 0/10 OLT5 up down 10000 0.0 0.0 0.00 0.00 0.00 0.00
* 11 eth 0/11 TRUNK SWITX MK SFP2 up up 10000 15.5M 25.3M 0.00 0.00 0.00 0.00
* 12 eth 0/12 up up 1000 3.9M 1.1M 0.00 0.00 0.00 0.00
* 13 eth 0/13 ROUTER MK up up 1000 488.5K 824.6K 0.00 0.00 0.00 0.00
* 14 eth 0/14 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 15 eth 0/15 NAS 2 up up 1000 3.5K 32.8K 0.00 0.00 0.00 0.00
* 16 eth 0/16 NAS 1 up up 1000 0.0 32.2K 0.00 0.00 0.00 0.00
boards...
entities...
MK-FIBRA-CENTRAL 10.255.254.23 ut:2952791
loc:OLOT mdl:RB1100 dscr:RouterOS RB1100x4
* id type name alias admn oper speed in_bw out_bw in_disc ou_disc in_err ou_err
* 1 eth ether1--CONTROL-CORRENT up up 100 341.4 1.0K 0.00 0.00 0.00 0.00
* 2 eth ether2--SWITX-1-FIBRA-ETHER13 up up 1000 829.8K 490.2K 0.00 0.00 0.00 0.00
* 3 eth ether3 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 4 eth ether4-- up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 5 eth ether5-SWITX-MK-CRS326 up up 100 7.5K 27.7K 0.00 0.00 0.00 0.00
* 6 eth ether6--SAI-DELTA-1 up up 1000 92.3 893.1 0.00 0.00 0.00 0.00
* 7 eth ether7--SAI-DELTA-2 up up 1000 91.7 892.9 0.00 0.00 0.00 0.00
* 8 eth ether8- up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 9 eth ether9-GESTIO-OLT2-10Gb up up 1000 21.9 1.2K 0.00 0.00 0.00 0.00
* 10 eth ether10-GESTIO-OLT1-10Gb up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 11 eth ether11-GESTIO-OLT4 up up 100 13.0 1.2K 0.00 0.00 0.00 0.00
* 12 eth ether12-GESTIO-OLT5 up up 100 314.3 1.2K 0.00 0.00 0.00 0.00
* 13 eth ether13-GESTIO-OLT6 up down 0 0.0 0.0 0.00 0.00 0.00 0.00
* 14 bridge bridge--VLAN-100-CENTRAL up up 0 248.8 0.0 0.00 0.00 0.00 0.00
* 16 bridge bridge-CONTROL-CORRENT up up 0 496.6 713.7 0.00 0.00 0.00 0.00
* 17 bridge loopback up up 0 0.0 51.0 0.00 0.00 0.00 0.00
* 20 l2vlan ether2.vlan-100 up up 1000 3.8K 363.6 0.00 0.00 0.00 0.00
* 22 l2vlan ether2.vlan-222-TRONCAL up up 1000 617.5K 479.6K 0.00 0.00 0.00 0.00
* 25 bridge bridge-GESTIO-OLT up up 0 466.6 416.0K 0.00 0.00 0.00 0.00
* 34 bridge bridge2-sai-control-corrent up up 0 0.0 53.4 0.00 0.00 0.00 0.00
* 38 l2vlan ether5.vlan-534-GESTIO down down 100 0.0 0.0 0.00 0.00 0.00 0.00
* 39 l2vlan vlan-534--GESTIO down down 0 0.0 0.0 0.00 0.00 0.00 0.00
DHCP Tools
dhcp leases print subnet [subnet]
It shows all the free IPs 'F' and the ones that are conceded '.' from a DHCP range.
ispadmin@lab3.phicus.es > dhcp leases print subnet tr069(10.42.0.0/20)
pool 10.42.0.15-10.42.15.245: leased 2939/4071 tr069 gpon
S IP MAC CLCID CLRID HOSTNAME STARTS ENDS
F 10.42.0.15 90:3f:ea:92:c5:57 - - - 220121-170337 220128-170337
. 10.42.0.16 c4:fb:aa:37:96:ce - - EG8145X6 221222-165224 221229-165224
F 10.42.0.17 f4:1d:6b:de:67:28 - - - 210530-205811 210531-110533
. 10.42.0.18 ac:f9:70:dc:c1:b1 - - - 221220-064634 221227-064634
. 10.42.0.19 f4:de:af:8a:a5:52 - - EG8145V5 221222-174647 221229-174647
. 10.42.0.20 f8:98:ef:de:c4:fd - - - 221222-063539 221229-063539
F 10.42.0.21 30:e9:8e:cb:0e:ed - - - 210525-155856 210528-171052
. 10.42.0.22 f4:1d:6b:de:3d:da - - EG8145V5 221221-133102 221228-133102
FAIL2BAN Tool
fail2ban asterisk show banned
Shows all the IPs that are banned from the asterisk server.
ispadmin@lab3.phicus.es > fail2ban asterisk show banned
fail2ban asterisk unban [IP]
Allows us to unban IPs from the asterisk server.
ispadmin@lab3.phicus.es > fail2ban asterisk unban 10.10.20.2
GHN Tools
ghn cpes status gam [HOST_NAME]
It allows us to see the signal and condition of all the CPEs that use the GHN technology.
ispadmin@lab3.phicus.es > ghn cpes status gam gamEdif24B
gamEdif24B
port cpeid mac state uptime cablelen tx rx dnpps uppps dnerr uperr dnblck upblck dnerblk uperblk
1 1 020101b08aa6 online 705291 40 703282 705373 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 2 0201023ce901 online 705291 32 703222 705368 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 3 020103c10e2a online 705291 45 703285 705254 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 4 02010434ae37 online 705291 44 703158 705220 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 5 0201050c1c92 online 705291 26 703263 705221 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 6 020106d8bc90 online 705291 39 703138 705211 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 7 020107024360 online 705291 26 703217 705350 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 8 020108dcd20d online 705291 55 703282 705366 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 9 0201090a8f9f online 705291 27 703201 705317 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
1 10 02010ac1dede online 705291 51 703146 705369 0.0 0.0 0.00 0.00 0.0 0.0 0.00000 0.00000
GPON Tools
gpon olt [OLT_ID] provision
It allows us to start a provision cycle for the selected OLT.
ispadmin@lab3.phicus.es > gpon olt oltHuawei provision
[2022-12-23 11:22:25 CET] INFO: [root/2041872] main...
[2022-12-23 11:22:25 CET] INFO: [krill_gpon.provision.provision/2041872] provision_unconfigured starts... (olt_names=['oltHuawei'] set_database=True)
[2022-12-23 11:22:25 CET] INFO: [krill_gpon.provision.provision/2041872] _provision_olt_unconfigured olt_name=oltHuawei frame_slot_port=None set_database=True
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.provision.provision/2041872] olt=oltHuawei unconf={'sn': '54504c4797441b58', 'index': '4194345472', 'onu_type': 'XX230v', 'olt': 'oltHuawei', 'time': '2022-12-23T11:22:28.082494', 'fsp': '0/5/2'}...
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.snmpolt.huawei.olt/2041872] mongo memento seems valid for oltHuawei
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.provision.provision/2041872] olt=oltHuawei unconf={'sn': '54504c4797441b58', 'index': '4194345472', 'onu_type': 'XX230v', 'olt': 'oltHuawei', 'time': '2022-12-23T11:22:28.082494', 'fsp': '0/5/2'}!!!
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.provision.provision/2041872] olt=oltHuawei unconf={'sn': '4857544393049f38', 'index': '4194345728', 'onu_type': '110H', 'olt': 'oltHuawei', 'time': '2022-12-23T11:22:28.083381', 'fsp': '0/5/3'}...
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.provision.provision/2041872] olt=oltHuawei unconf={'sn': '4857544393049f38', 'index': '4194345728', 'onu_type': '110H', 'olt': 'oltHuawei', 'time': '2022-12-23T11:22:28.083381', 'fsp': '0/5/3'}!!!
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.provision.provision/2041872] olt=oltHuawei unconf={'sn': '48575443614711a7', 'index': '4194345984', 'onu_type': 'EG8145V5', 'olt': 'oltHuawei', 'time': '2022-12-23T11:22:28.084011', 'fsp': '0/5/4'}...
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.provision.provision/2041872] olt=oltHuawei unconf={'sn': '48575443614711a7', 'index': '4194345984', 'onu_type': 'EG8145V5', 'olt': 'oltHuawei', 'time': '2022-12-23T11:22:28.084011', 'fsp': '0/5/4'}!!!
[2022-12-23 11:22:28 CET] INFO: [krill_gpon.provision.provision/2041872] provision_unconfigured report: filter=['oltHuawei'] --> 0 ONUs
[2022-12-23 11:22:28 CET] INFO: [root/2041872] main!!!
gpon olt [OLT_ID] snapshot
It is used when there's a change in the OLT static configuration, Krill must know those changes, for example: traffic table, traffic profile, etc.
ispadmin@lab3.phicus.es > gpon olt oltHuawei snapshot
[2022-12-23 11:23:01 CET] INFO: [root/2042831] load starts... (Namespace(backup=False, base_path='/var/lib/krill/backup', catv=False, init_full=False, just_list=False, max_threads=8, no_realm=False, offset=0, olt=['oltHuawei'], onus_to_skip=0, parse=None, parse_newest=False, pon=None, realm=None, vendor=None, verbose=1, **{'limit in OLTs to handle': None}))
[2022-12-23 11:23:01 CET] INFO: [root/2042831] load_olt oltHuawei Namespace(backup=False, base_path='/var/lib/krill/backup', catv=False, init_full=False, just_list=False, max_threads=8, no_realm=False, offset=0, olt=['oltHuawei'], onus_to_skip=0, parse=None, parse_newest=False, pon=None, realm=None, vendor=None, verbose=1, **{'limit in OLTs to handle': None})
[2022-12-23 11:23:01 CET] INFO: [krill_gpon.common.mementoloader/2042831] do oltHuawei
[2022-12-23 11:23:02 CET] INFO: [krill_gpon.common.mementoloader/2042831] do_from_device olt=oltHuawei (<class 'krill_gpon.snmpolt.huawei.olt.OltHuawei'>) options=Namespace(backup=False, base_path='/var/lib/krill/backup', catv=False, init_full=False, just_list=False, max_threads=8, no_realm=False, offset=0, olt=['oltHuawei'], onus_to_skip=0, parse=None, parse_newest=False, pon=None, realm=None, vendor=None, verbose=1, **{'limit in OLTs to handle': None})
[2022-12-23 11:23:02 CET] INFO: [krill_gpon.common.mementoloader/2042831] do_from_device olt=oltHuawei -> memento_init_static
[2022-12-23 11:23:02 CET] INFO: [krill_gpon.snmpolt.huawei.memento/2042831] memento::init_static1 olt=oltHuawei...
[2022-12-23 11:23:35 CET] INFO: [krill_gpon.snmpolt.huawei.olt/2042831] mongo memento seems valid for oltHuawei
gpon olt [OLT_ID] snapshot-full
It is used when a change in the ONT's configuration is made and Krill must know those changes. It is also a good practice to use it when we add ONTs manually in the OLT so we can have all the IDs from that OLT updated.
ispadmin@lab3.phicus.es > gpon olt oltHuawei snapshot-full
[2022-12-23 11:23:56 CET] INFO: [root/2044026] load starts... (Namespace(backup=False, base_path='/var/lib/krill/backup', catv=False, init_full=True, just_list=False, max_threads=8, no_realm=False, offset=0, olt=['oltHuawei'], onus_to_skip=0, parse=None, parse_newest=False, pon=None, realm=None, vendor=None, verbose=1, **{'limit in OLTs to handle': None}))
[2022-12-23 11:23:56 CET] INFO: [root/2044026] load_olt oltHuawei Namespace(backup=False, base_path='/var/lib/krill/backup', catv=False, init_full=True, just_list=False, max_threads=8, no_realm=False, offset=0, olt=['oltHuawei'], onus_to_skip=0, parse=None, parse_newest=False, pon=None, realm=None, vendor=None, verbose=1, **{'limit in OLTs to handle': None})
[2022-12-23 11:23:56 CET] INFO: [krill_gpon.common.mementoloader/2044026] do oltHuawei
[2022-12-23 11:23:57 CET] INFO: [krill_gpon.common.mementoloader/2044026] do_from_device olt=oltHuawei (<class 'krill_gpon.snmpolt.huawei.olt.OltHuawei'>) options=Namespace(backup=False, base_path='/var/lib/krill/backup', catv=False, init_full=True, just_list=False, max_threads=8, no_realm=False, offset=0, olt=['oltHuawei'], onus_to_skip=0, parse=None, parse_newest=False, pon=None, realm=None, vendor=None, verbose=1, **{'limit in OLTs to handle': None})
[2022-12-23 11:23:57 CET] INFO: [krill_gpon.snmpolt.huawei.memento/2044026] memento::init_static1 olt=oltHuawei...
[2022-12-23 11:24:28 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei onus...
[2022-12-23 11:24:40 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei service flows...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei init... (4 ONUs)
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei native vlans...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei merge...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('3334',) sf=p1=0 p2=5 p3=0 p4=1 type=gpon svlan=1301 upara=-1 out=management in=management...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('3335',) sf=p1=0 p2=5 p3=0 p4=1 type=gpon svlan=1301 upara=-1 out=100M in=100M...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('5556',) sf=p1=0 p2=5 p3=3 p4=0 type=gpon svlan=1100 upara=-1 out= in=...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('5557',) sf=p1=0 p2=5 p3=2 p4=1 type=gpon svlan=933 upara=1023 out=management in=management...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('5558',) sf=p1=0 p2=5 p3=2 p4=1 type=gpon svlan=1100 upara=1021 out=100M in=100M...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('5559',) sf=p1=0 p2=5 p3=2 p4=2 type=gpon svlan=933 upara=20 out=management in=management...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('5560',) sf=p1=0 p2=5 p3=2 p4=2 type=gpon svlan=1100 upara=1021 out=100M in=100M...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('5561',) sf=p1=0 p2=5 p3=3 p4=0 type=gpon svlan=933 upara=1023 out=management in=management...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.services/2044026] get_olt_onus olt=oltHuawei sf_index=('5562',) sf=p1=0 p2=5 p3=3 p4=0 type=gpon svlan=1100 upara=1021 out=100M in=100M...
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.common.memento/2044026] memento::init_onus olt=oltHuawei onus-3 -> 4
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.common.memento/2044026] init_onus oltHuawei -> 4 ONUs
[2022-12-23 11:24:56 CET] INFO: [krill_gpon.snmpolt.huawei.olt/2044026] mongo memento seems valid for oltHuawei
gpon onu by-sn [SERIAL_NUMBER]
It allows us to see the condition of an ONT by its serial number.
ispadmin@lab3.phicus.es > gpon onu by-sn 444632326a183197
cpehost=*cpe-267* sn=444632326a183197
sn : 444632326a183197 (DF226A183197)
*OLT*
olt : oltHuawei
f/s/p-onu : 0/5/2-2
status : up
reg_status : ['online']
uptime : 167887
desc : cpe0267
type_name : FD604GW-DX-R710
line_profile : None
service_profile : None
dnrx : -8.89 dBm
catvrx : 25.6 dBm
uptx : 1.65 dBm -> -11.340000000000003 dBm (12.990000000000004 dB att)
bw : 0 / 0 bps
ips : ['0.0.0.0']
alarms :
*Kiwi*
CPE : cpe-267
Customer : #None b'incauto' b'turista'
Address : b''
Speed : /
Service : None
Active : False
Access : False
Model : None
Address mode : None
D-SN : None
Notes : b'notes...'
Service ports
service-port u-vlan s-vlan native outbound inbound
Memento
5558 20 933 management management
5559 1021 1100 100M 100M
last registration info:
#0 from 2022-12-21 10:45:47Z to 2022-12-21 10:51:45Z -> cause losi
#1 from 2022-12-21 10:52:32Z to -> cause noerror
TIP
This command can be used specifying other selection parameters:
- CPE ID:
gpon onu id 0267 - CPE_NAME:
gpon onu cpe cpe0267
gpon onu do factory-reset by-sn [SERIAL_NUMBER]
It allows us to do a factory-reset of the ont through the cli, using the serial number.
ispadmin@lab3.phicus.es > gpon onu do factory-reset by-sn 444632326a183197
TIP
The same command can be used specifying other selection parameters:
- CPE ID:
gpon onu do factory-reset id 0267 - CPE_NAME:
gpon onu do factory-reset cpe cpe0267
gpon onu do reboot by-sn [SERIAL_NUMBER]
It allows us to reboot the ont using it serial number.
ispadmin@lab3.phicus.es > gpon onu do reboot by-sn 444632326a183197
TIP
The same command can be used specifying other selection parameters:
- CPE ID:
gpon onu do reboot id 0267 - CPE_NAME:
gpon onu do reboot cpe cpe0267
gpon onu do reboot by-sn [SERIAL_NUMBER]
It allows us to unprovision the ONT using its serial number.
ispadmin@lab3.phicus.es > gpon onu do unprovision by-sn 444632326a183197
TIP
The same command can be used specifying other selection parameters:
- CPE ID:
gpon onu do unprovision id 0267 - CPE_NAME:
gpon onu do unprovision cpe cpe0267
gpon onus bandwidth olt [OLT_ID]
It allows us to see the bandwith for each ONT.
ispadmin@lab3.phicus.es > gpon onus bandwidth olt oltHuawei
OLT: oltHuawei
f/ s/ p:id desc type sn status dnbw upbw
==========================================================================================
0/ 5/ 0:01 bundletest 4857544311111111 down 0.0 0.0
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 49.1 0.0 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 66.1 237.3 0.0.0.0
0/ 5/ 3:00 cpe0273 245H 4857544300000000 online 53.9 5.7 0.0.0.0
gpon onus bandwidth olt [OLT_ID] pon [FRAME] [SLOT] [PORT]
It allows us to see the bandwith for each ONT of an specific PON.
ispadmin@lab3.phicus.es > gpon onus bandwidth olt oltHuawei pon 0 5 2
OLT: oltHuawei
f/ s/ p:id desc type sn status dnbw upbw
==========================================================================================
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 0.0 0.0 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 73.5 266.6 0.0.0.0
gpon onus provisioned mismatchs olt [OLT_ID]
Shows ONTs that have been provisioned but have some parameter that is not correct in the provision.
ispadmin@lab3.phicus.es > gpon onu provisioned mismatchs olt oltHuawei
OLT: oltHuawei (4 ONUs)
0/ 5/ 0: 1 4857544311111111 -1/1301/si/-1 -1/1301/si/-1 /bundletest act=0 acc=0 add=
0/ 5/ 2: 1 4d53544330c1ec46 HG8245Q2 1023/933/by/1023 1021/1100/by/1021 /cpe0264 act=0 acc=0 add=HG8245Q2
0/ 5/ 2: 2 444632326a183197 FD604GW-DX-R710 20/933/by/20 1021/1100/by/1021 /cpe0267 act=0 acc=0 add=FD604GW-DX-R710
0/ 5/ 3: 0 4857544300000000 245H -1/1100/si/-1 1023/933/by/1023 1021/1100/by/1021 /cpe0273 act=0 acc=0 add=245H
gpon onus provisioned olt [OLT_ID]
Shows the provisioned ONTs in an specific OLT.
ispadmin@lab3.phicus.es > gpon onus provisioned olt oltHuawei
OLT: oltHuawei (4 ONUs)
0/ 5/ 0: 1 4857544311111111 -1/1301/si/-1 -1/1301/si/-1 /bundletest act=0 acc=0 add=
0/ 5/ 2: 1 4d53544330c1ec46 HG8245Q2 1023/933/by/1023 1021/1100/by/1021 /cpe0264 act=0 acc=0 add=HG8245Q2
0/ 5/ 2: 2 444632326a183197 FD604GW-DX-R710 20/933/by/20 1021/1100/by/1021 /cpe0267 act=0 acc=0 add=FD604GW-DX-R710
0/ 5/ 3: 0 4857544300000000 245H -1/1100/si/-1 1023/933/by/1023 1021/1100/by/1021 /cpe0273 act=0 acc=0 add=245H
gpon onus report olt [OLT_ID]
It creates a report of all the ONTs connected to the OLT.
ispadmin@lab3.phicus.es > gpon onus report olt oltHuawei
OLT: oltHuawei
f/ s/ p:id desc type sn status
============================================================================
0/ 5/ 0:01 bundletest 4857544311111111 down
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 0.0.0.0
0/ 5/ 3:00 cpe0273 245H 4857544300000000 online 0.0.0.0
gpon onus report olt [OLT_ID] pon [FRAME] [SLOT] [PORT]
It shows a report of the ONTs connected to a certain PON.
ispadmin@lab3.phicus.es > gpon onus report olt oltHuawei pon 0 5 2
OLT: oltHuawei
f/ s/ p:id desc type sn status
============================================================================
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 0.0.0.0
gpon onus status olt [OLT_ID]
It shows the condition of the ONTs connected to an OLT.
ispadmin@lab3.phicus.es > gpon onus status olt oltHuawei
OLT: oltHuawei
f/ s/ p:id desc type sn status
============================================================================
0/ 5/ 0:01 bundletest 4857544311111111 down
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 0.0.0.0
0/ 5/ 3:00 cpe0273 245H 4857544300000000 online 0.0.0.0
gpon onus status olt [OLT_ID] pon [FRAME] [SLOT] [PORT]
It shows the condition of the ONTs connected to a certain PON.
ispadmin@lab3.phicus.es > gpon onus status olt oltHuawei pon 0 5 2
OLT: oltHuawei
f/ s/ p:id desc type sn status
============================================================================
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 0.0.0.0
gpon onus txrx olt [OLT_ID]
It shows the ONTs' power Tx/Rx of a certain OLT.
ispadmin@lab3.phicus.es > gpon onus txrx olt oltHuawei
OLT: oltHuawei
f/ s/ p:id desc type sn status dnTx dnRx dnAtt upTx upRx upAtt tvRx pondsv
============================================================================================================================================
0/ 5/ 0:01 bundletest 4857544311111111 down
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 5.12 -8.82 13.94 2.38 -11.07 13.45 -1.00 0.00 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 5.12 -8.94 14.06 1.65 -11.16 12.81 -1.00 0.00 0.0.0.0
0/ 5/ 3:00 cpe0273 245H 4857544300000000 online 5.12 -29.58 34.70 2.14 -16.87 19.01 -1.00 0.00 0.0.0.0
gpon onus txrx olt [OLT_ID] pon [FRAME] [SLOT] [PORT]
It shows the ONTs' power Tx/Rx of an OLT in a certain PON.
ispadmin@lab3.phicus.es > gpon onus txrx olt oltHuawei pon 0 5 2
OLT: oltHuawei
f/ s/ p:id desc type sn status dnTx dnRx dnAtt upTx upRx upAtt tvRx pondsv
============================================================================================================================================
0/ 5/ 2:01 cpe0264 HG8245Q2 4d53544330c1ec46 online 5.10 -8.87 13.97 2.36 -11.11 13.47 -1.00 0.00 0.0.0.0
0/ 5/ 2:02 cpe0267 FD604GW-DX-R 444632326a183197 online 5.10 -8.92 14.02 1.69 -11.16 12.85 -1.00 0.00 0.0.0.0
gpon onu unconfigured (A deprecar)
It shows the pending configuration ONTs.
ispadmin@lab3.phicus.es > gpon onu unconfigured
WARNING: Command are deprecated. Please use 'gpon provision pending' instead
+-----------+-------+------------------+----------+----------------------------+
| OLT | f/s/p | Serial Number | Model | Time |
+-----------+-------+------------------+----------+----------------------------+
| oltHuawei | 0/5/2 | 54504c4797441b58 | XX230v | 2022-12-23T11:38:23.114467 |
| oltHuawei | 0/5/3 | 4857544393049f38 | 110H | 2022-12-23T11:38:23.114965 |
| oltHuawei | 0/5/4 | 48575443614711a7 | EG8145V5 | 2022-12-23T11:38:23.115389 |
+-----------+-------+------------------+----------+----------------------------+
gpon provision pending
It shows the pending provision ONTs.
ispadmin@lab3.phicus.es > gpon provision pending
+-----------+-------+------------------+----------+----------------------------+
| OLT | f/s/p | Serial Number | Model | Time |
+-----------+-------+------------------+----------+----------------------------+
| oltHuawei | 0/5/2 | 54504c4797441b58 | XX230v | 2022-12-23T11:48:33.327472 |
| oltHuawei | 0/5/3 | 4857544393049f38 | 110H | 2022-12-23T11:48:33.328009 |
| oltHuawei | 0/5/4 | 48575443614711a7 | EG8145V5 | 2022-12-23T11:48:33.328380 |
+-----------+-------+------------------+----------+----------------------------+
gpon provision pending olt [OLT_ID]
It shows the pending provision ONTs in a certain OLT.
ispadmin@lab3.phicus.es > gpon provision pending olt oltHuawei
+-----------+-------+------------------+----------+----------------------------+
| OLT | f/s/p | Serial Number | Model | Time |
+-----------+-------+------------------+----------+----------------------------+
| oltHuawei | 0/5/2 | 54504c4797441b58 | XX230v | 2022-12-23T11:49:27.671639 |
| oltHuawei | 0/5/3 | 4857544393049f38 | 110H | 2022-12-23T11:49:27.672131 |
| oltHuawei | 0/5/4 | 48575443614711a7 | EG8145V5 | 2022-12-23T11:49:27.672485 |
+-----------+-------+------------------+----------+----------------------------+
TR069 Tools
tr069 reconfig [CPE_ID]
Start a TR069 session for an ONT.
ispadmin@lab3.phicus.es > tr069 reconfig cpe0273
DOCSIS Tools
docsis cmts print
It allows to visualize the information of all the available cmts.
ispadmin@lab3.phicus.es > docsis cmts print
CMTS: cmtsCENTRAL
uptime: None
MD: ix=1033 name=ca5-0
Channels:
channel chanid=17 pri=true ifindex=1135 name=In5/0:0 freq=681000000
channel chanid=18 pri=true ifindex=1136 name=In5/0:1 freq=687000000
channel chanid=19 pri=true ifindex=1137 name=In5/0:2 freq=693000000
channel chanid=20 pri=true ifindex=1138 name=In5/0:3 freq=699000000
channel chanid=1 pri=false ifindex=1721 name=Ca5/0-upstream0 freq=35800000
channel chanid=2 pri=false ifindex=1722 name=Ca5/0-upstream1 freq=35800000
channel chanid=3 pri=false ifindex=1723 name=Ca5/0-upstream2 freq=35800000
channel chanid=4 pri=false ifindex=1724 name=Ca5/0-upstream3 freq=35800000
MD: ix=1017 name=ca3-0
Channels:
channel chanid=1 pri=true ifindex=1095 name=In3/0:0 freq=657000000
channel chanid=2 pri=true ifindex=1096 name=In3/0:1 freq=663000000
channel chanid=3 pri=true ifindex=1097 name=In3/0:2 freq=669000000
channel chanid=4 pri=true ifindex=1098 name=In3/0:3 freq=675000000
channel chanid=1 pri=false ifindex=1337 name=Ca3/0-upstream0 freq=32600000
channel chanid=2 pri=false ifindex=1338 name=Ca3/0-upstream1 freq=32600000
channel chanid=3 pri=false ifindex=1339 name=Ca3/0-upstream2 freq=32600000
channel chanid=4 pri=false ifindex=1340 name=Ca3/0-upstream3 freq=32600000
MD: ix=1025 name=ca4-0
Channels:
channel chanid=9 pri=true ifindex=1115 name=In4/0:0 freq=705000000
channel chanid=10 pri=true ifindex=1116 name=In4/0:1 freq=711000000
channel chanid=11 pri=true ifindex=1117 name=In4/0:2 freq=717000000
channel chanid=12 pri=true ifindex=1118 name=In4/0:3 freq=723000000
channel chanid=1 pri=false ifindex=1529 name=Ca4/0-upstream0 freq=39000000
channel chanid=2 pri=false ifindex=1530 name=Ca4/0-upstream1 freq=39000000
channel chanid=3 pri=false ifindex=1531 name=Ca4/0-upstream2 freq=39000000
channel chanid=4 pri=false ifindex=1532 name=Ca4/0-upstream3 freq=39000000
MD: ix=1042 name=ca6-1
Channels:
channel chanid=29 pri=true ifindex=1165 name=In6/1:0 freq=681000000
channel chanid=30 pri=true ifindex=1166 name=In6/1:1 freq=687000000
channel chanid=31 pri=true ifindex=1167 name=In6/1:2 freq=693000000
channel chanid=32 pri=true ifindex=1168 name=In6/1:3 freq=699000000
channel chanid=1 pri=false ifindex=1937 name=Ca6/1-upstream0 freq=33600000
channel chanid=2 pri=false ifindex=1938 name=Ca6/1-upstream1 freq=33600000
channel chanid=3 pri=false ifindex=1939 name=Ca6/1-upstream2 freq=33600000
channel chanid=4 pri=false ifindex=1940 name=Ca6/1-upstream3 freq=33600000
MD: ix=1026 name=ca4-1
Channels:
channel chanid=13 pri=true ifindex=1125 name=In4/1:0 freq=657000000
channel chanid=14 pri=true ifindex=1126 name=In4/1:1 freq=663000000
channel chanid=15 pri=true ifindex=1127 name=In4/1:2 freq=669000000
channel chanid=16 pri=true ifindex=1128 name=In4/1:3 freq=675000000
channel chanid=1 pri=false ifindex=1553 name=Ca4/1-upstream0 freq=32600000
channel chanid=2 pri=false ifindex=1554 name=Ca4/1-upstream1 freq=32600000
channel chanid=3 pri=false ifindex=1555 name=Ca4/1-upstream2 freq=32600000
channel chanid=4 pri=false ifindex=1556 name=Ca4/1-upstream3 freq=32600000
MD: ix=1034 name=ca5-1
Channels:
channel chanid=21 pri=true ifindex=1145 name=In5/1:0 freq=705000000
channel chanid=22 pri=true ifindex=1146 name=In5/1:1 freq=711000000
channel chanid=23 pri=true ifindex=1147 name=In5/1:2 freq=717000000
channel chanid=24 pri=true ifindex=1148 name=In5/1:3 freq=723000000
channel chanid=1 pri=false ifindex=1745 name=Ca5/1-upstream0 freq=39000000
channel chanid=2 pri=false ifindex=1746 name=Ca5/1-upstream1 freq=39000000
channel chanid=3 pri=false ifindex=1747 name=Ca5/1-upstream2 freq=39000000
channel chanid=4 pri=false ifindex=1748 name=Ca5/1-upstream3 freq=39000000
MD: ix=1018 name=ca3-1
Channels:
channel chanid=5 pri=true ifindex=1105 name=In3/1:0 freq=681000000
channel chanid=6 pri=true ifindex=1106 name=In3/1:1 freq=687000000
channel chanid=7 pri=true ifindex=1107 name=In3/1:2 freq=693000000
channel chanid=8 pri=true ifindex=1108 name=In3/1:3 freq=699000000
channel chanid=1 pri=false ifindex=1361 name=Ca3/1-upstream0 freq=35800000
channel chanid=2 pri=false ifindex=1362 name=Ca3/1-upstream1 freq=35800000
channel chanid=3 pri=false ifindex=1363 name=Ca3/1-upstream2 freq=35800000
channel chanid=4 pri=false ifindex=1364 name=Ca3/1-upstream3 freq=35800000
MD: ix=1041 name=ca6-0
Channels:
channel chanid=25 pri=true ifindex=1155 name=In6/0:0 freq=657000000
channel chanid=26 pri=true ifindex=1156 name=In6/0:1 freq=663000000
channel chanid=27 pri=true ifindex=1157 name=In6/0:2 freq=669000000
channel chanid=28 pri=true ifindex=1158 name=In6/0:3 freq=675000000
channel chanid=1 pri=false ifindex=1913 name=Ca6/0-upstream0 freq=30400000
channel chanid=2 pri=false ifindex=1914 name=Ca6/0-upstream1 freq=30400000
channel chanid=3 pri=false ifindex=1915 name=Ca6/0-upstream2 freq=30400000
channel chanid=4 pri=false ifindex=1916 name=Ca6/0-upstream3 freq=30400000
Upstreams
itf id freq width mp modulation interface
1337 1 32600000 3200000 122 qpsk ca3-0-up0 up
1338 2 32600000 3200000 122 qpsk ca3-0-up1 up
1339 3 32600000 3200000 122 qpsk ca3-0-up2 up
1340 4 32600000 3200000 122 qpsk ca3-0-up3 up
1361 1 35800000 3200000 122 qpsk ca3-1-up0 up
1362 2 35800000 3200000 122 qpsk ca3-1-up1 up
1363 3 35800000 3200000 122 qpsk ca3-1-up2 up
1364 4 35800000 3200000 122 qpsk ca3-1-up3 up
1529 1 39000000 3200000 122 qpsk ca4-0-up0 up
1530 2 39000000 3200000 122 qpsk ca4-0-up1 up
1531 3 39000000 3200000 122 qpsk ca4-0-up2 up
1532 4 39000000 3200000 122 qpsk ca4-0-up3 up
1553 1 32600000 3200000 122 qpsk ca4-1-up0 up
1554 2 32600000 3200000 122 qpsk ca4-1-up1 up
1555 3 32600000 3200000 122 qpsk ca4-1-up2 up
1556 4 32600000 3200000 122 qpsk ca4-1-up3 up
1721 1 35800000 3200000 122 qpsk ca5-0-up0 up
1722 2 35800000 3200000 122 qpsk ca5-0-up1 up
1723 3 35800000 3200000 122 qpsk ca5-0-up2 up
1724 4 35800000 3200000 122 qpsk ca5-0-up3 up
1745 1 39000000 3200000 122 qpsk ca5-1-up0 up
1746 2 39000000 3200000 122 qpsk ca5-1-up1 up
1747 3 39000000 3200000 122 qpsk ca5-1-up2 up
1748 4 39000000 3200000 122 qpsk ca5-1-up3 up
1913 1 30400000 3200000 122 qpsk ca6-0-up0 up
1914 2 30400000 3200000 122 qpsk ca6-0-up1 up
1915 3 30400000 3200000 122 qpsk ca6-0-up2 up
1916 4 30400000 3200000 122 qpsk ca6-0-up3 up
1937 1 33600000 3200000 122 qpsk ca6-1-up0 up
1938 2 33600000 3200000 122 qpsk ca6-1-up1 up
1939 3 33600000 3200000 122 qpsk ca6-1-up2 up
1940 4 33600000 3200000 122 qpsk ca6-1-up3 up
Downstreams
itf id freq modulation pow interface
1289 1 657000000 qam256 46.0 in3-0-dn0 up
1290 2 663000000 qam256 46.0 in3-0-dn1 up
1291 3 669000000 qam256 46.0 in3-0-dn2 up
1292 4 675000000 qam256 46.0 in3-0-dn3 up
1293 5 681000000 qam256 46.0 in3-1-dn0 up
1294 6 687000000 qam256 46.0 in3-1-dn1 up
1295 7 693000000 qam256 46.0 in3-1-dn2 up
1296 8 699000000 qam256 46.0 in3-1-dn3 up
1297 9 705000000 qam256 46.0 in4-0-dn0 up
1298 10 711000000 qam256 46.0 in4-0-dn1 up
1299 11 717000000 qam256 46.0 in4-0-dn2 up
1300 12 723000000 qam256 46.0 in4-0-dn3 up
1301 13 657000000 qam256 46.0 in4-1-dn0 up
1302 14 663000000 qam256 46.0 in4-1-dn1 up
1303 15 669000000 qam256 46.0 in4-1-dn2 up
1304 16 675000000 qam256 46.0 in4-1-dn3 up
1305 17 681000000 qam256 46.0 in5-0-dn0 up
1306 18 687000000 qam256 46.0 in5-0-dn1 up
1307 19 693000000 qam256 46.0 in5-0-dn2 up
1308 20 699000000 qam256 46.0 in5-0-dn3 up
1309 21 705000000 qam256 46.0 in5-1-dn0 up
1310 22 711000000 qam256 46.0 in5-1-dn1 up
1311 23 717000000 qam256 46.0 in5-1-dn2 up
1312 24 723000000 qam256 46.0 in5-1-dn3 up
1313 25 657000000 qam256 44.0 in6-0-dn0 up
1314 26 663000000 qam256 44.0 in6-0-dn1 up
1315 27 669000000 qam256 44.0 in6-0-dn2 up
1316 28 675000000 qam256 44.0 in6-0-dn3 up
1317 29 681000000 qam256 44.0 in6-1-dn0 up
1318 30 687000000 qam256 44.0 in6-1-dn1 up
1319 31 693000000 qam256 44.0 in6-1-dn2 up
1320 32 699000000 qam256 44.0 in6-1-dn3 up
Fiber Nodes
FN-1 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-2 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-3 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-4 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-5 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-6 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-7 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-8 - (map: []) (DS: chanids=[] chans=set() / US: chanids=[] chans=set())
FN-9 - (map: [(1041, 2621701, 1, 5), (1042, 2687237, 1, 5)]) (DS: chanids=[2686977, 2752513] chans={32, 25, 26, 27, 28, 29, 30, 31} / US: chanids=[1, 1] chans={1})
FN-10 - (map: [(1041, 2621702, 1, 6), (1042, 2687238, 1, 6)]) (DS: chanids=[2686977, 2752513] chans={32, 25, 26, 27, 28, 29, 30, 31} / US: chanids=[2, 2] chans={2})
FN-11 - (map: [(1041, 2621703, 1, 7), (1042, 2687239, 1, 7)]) (DS: chanids=[2686977, 2752513] chans={32, 25, 26, 27, 28, 29, 30, 31} / US: chanids=[3, 3] chans={3})
FN-12 - (map: [(1041, 2621704, 1, 8), (1042, 2687240, 1, 8)]) (DS: chanids=[2686977, 2752513] chans={32, 25, 26, 27, 28, 29, 30, 31} / US: chanids=[4, 4] chans={4})
CMTS: cmtsKENEDY
uptime: None
MD: ix=2000004 name=catv-mac.4
Channels:
channel chanid=1 pri=true ifindex=3000032 name=Downstream 2/0/0 freq=657000000
channel chanid=2 pri=true ifindex=3000033 name=Downstream 2/0/1 freq=663000000
channel chanid=3 pri=true ifindex=3000034 name=Downstream 2/0/2 freq=669000000
channel chanid=4 pri=true ifindex=3000035 name=Downstream 2/0/3 freq=675000000
channel chanid=5 pri=true ifindex=3000036 name=Downstream 2/1/0 freq=681000000
channel chanid=6 pri=true ifindex=3000037 name=Downstream 2/1/1 freq=687000000
channel chanid=7 pri=true ifindex=3000038 name=Downstream 2/1/2 freq=693000000
channel chanid=8 pri=true ifindex=3000039 name=Downstream 2/1/3 freq=699000000
channel chanid=9 pri=true ifindex=3000040 name=Downstream 2/2/0 freq=705000000
channel chanid=10 pri=true ifindex=3000041 name=Downstream 2/2/1 freq=711000000
channel chanid=11 pri=true ifindex=3000042 name=Downstream 2/2/2 freq=717000000
channel chanid=12 pri=true ifindex=3000043 name=Downstream 2/2/3 freq=723000000
channel chanid=13 pri=true ifindex=3000044 name=Downstream 2/3/0 freq=729000000
channel chanid=14 pri=true ifindex=3000045 name=Downstream 2/3/1 freq=735000000
channel chanid=15 pri=true ifindex=3000046 name=Downstream 2/3/2 freq=741000000
channel chanid=16 pri=true ifindex=3000047 name=Downstream 2/3/3 freq=747000000
channel chanid=1 pri=false ifindex=5000320 name=Logical Upstream Channel 5/0/0 freq=36800000
channel chanid=2 pri=false ifindex=5000324 name=Logical Upstream Channel 5/1/0 freq=40000000
channel chanid=3 pri=false ifindex=5000328 name=Logical Upstream Channel 5/2/0 freq=36800000
channel chanid=4 pri=false ifindex=5000332 name=Logical Upstream Channel 5/3/0 freq=40000000
channel chanid=5 pri=false ifindex=5000336 name=Logical Upstream Channel 5/4/0 freq=36800000
channel chanid=6 pri=false ifindex=5000340 name=Logical Upstream Channel 5/5/0 freq=40000000
channel chanid=7 pri=false ifindex=5000344 name=Logical Upstream Channel 5/6/0 freq=36800000
channel chanid=8 pri=false ifindex=5000348 name=Logical Upstream Channel 5/7/0 freq=40000000
MD: ix=2000002 name=catv-mac.2
Channels:
channel chanid=1 pri=true ifindex=3000008 name=Downstream 0/2/0 freq=657000000
channel chanid=2 pri=true ifindex=3000009 name=Downstream 0/2/1 freq=663000000
channel chanid=3 pri=true ifindex=3000010 name=Downstream 0/2/2 freq=669000000
channel chanid=4 pri=true ifindex=3000011 name=Downstream 0/2/3 freq=675000000
channel chanid=5 pri=true ifindex=3000012 name=Downstream 0/3/0 freq=681000000
channel chanid=6 pri=true ifindex=3000013 name=Downstream 0/3/1 freq=687000000
channel chanid=7 pri=true ifindex=3000014 name=Downstream 0/3/2 freq=693000000
channel chanid=8 pri=true ifindex=3000015 name=Downstream 0/3/3 freq=699000000
channel chanid=1 pri=false ifindex=5000208 name=Logical Upstream Channel 3/4.0/0 freq=36800000
channel chanid=2 pri=false ifindex=5000210 name=Logical Upstream Channel 3/4.1/0 freq=40000000
channel chanid=3 pri=false ifindex=5000212 name=Logical Upstream Channel 3/5.0/0 freq=36800000
channel chanid=4 pri=false ifindex=5000214 name=Logical Upstream Channel 3/5.1/0 freq=40000000
channel chanid=5 pri=false ifindex=5000216 name=Logical Upstream Channel 3/6.0/0 freq=36800000
channel chanid=6 pri=false ifindex=5000218 name=Logical Upstream Channel 3/6.1/0 freq=40000000
channel chanid=7 pri=false ifindex=5000220 name=Logical Upstream Channel 3/7.0/0 freq=36800000
channel chanid=8 pri=false ifindex=5000222 name=Logical Upstream Channel 3/7.1/0 freq=40000000
MD: ix=2000001 name=catv-mac.1
Channels:
channel chanid=1 pri=true ifindex=3000000 name=Downstream 0/0/0 freq=657000000
channel chanid=2 pri=true ifindex=3000001 name=Downstream 0/0/1 freq=663000000
channel chanid=3 pri=true ifindex=3000002 name=Downstream 0/0/2 freq=669000000
channel chanid=4 pri=true ifindex=3000003 name=Downstream 0/0/3 freq=675000000
channel chanid=5 pri=true ifindex=3000004 name=Downstream 0/1/0 freq=681000000
channel chanid=6 pri=true ifindex=3000005 name=Downstream 0/1/1 freq=687000000
channel chanid=7 pri=true ifindex=3000006 name=Downstream 0/1/2 freq=693000000
channel chanid=8 pri=true ifindex=3000007 name=Downstream 0/1/3 freq=699000000
channel chanid=1 pri=false ifindex=5000192 name=Logical Upstream Channel 3/0.0/0 freq=36800000
channel chanid=2 pri=false ifindex=5000194 name=Logical Upstream Channel 3/0.1/0 freq=40000000
channel chanid=3 pri=false ifindex=5000196 name=Logical Upstream Channel 3/1.0/0 freq=36800000
channel chanid=4 pri=false ifindex=5000198 name=Logical Upstream Channel 3/1.1/0 freq=40000000
channel chanid=5 pri=false ifindex=5000200 name=Logical Upstream Channel 3/2.0/0 freq=36800000
channel chanid=6 pri=false ifindex=5000202 name=Logical Upstream Channel 3/2.1/0 freq=40000000
channel chanid=7 pri=false ifindex=5000204 name=Logical Upstream Channel 3/3.0/0 freq=36800000
channel chanid=8 pri=false ifindex=5000206 name=Logical Upstream Channel 3/3.1/0 freq=40000000
MD: ix=2000003 name=catv-mac.3
Channels:
channel chanid=1 pri=true ifindex=3000016 name=Downstream 1/0/0 freq=657000000
channel chanid=2 pri=true ifindex=3000017 name=Downstream 1/0/1 freq=663000000
channel chanid=3 pri=true ifindex=3000018 name=Downstream 1/0/2 freq=669000000
channel chanid=4 pri=true ifindex=3000019 name=Downstream 1/0/3 freq=675000000
channel chanid=5 pri=true ifindex=3000020 name=Downstream 1/1/0 freq=681000000
channel chanid=6 pri=true ifindex=3000021 name=Downstream 1/1/1 freq=687000000
channel chanid=7 pri=true ifindex=3000022 name=Downstream 1/1/2 freq=693000000
channel chanid=8 pri=true ifindex=3000023 name=Downstream 1/1/3 freq=699000000
channel chanid=9 pri=true ifindex=3000024 name=Downstream 1/2/0 freq=705000000
channel chanid=10 pri=true ifindex=3000025 name=Downstream 1/2/1 freq=711000000
channel chanid=11 pri=true ifindex=3000026 name=Downstream 1/2/2 freq=717000000
channel chanid=12 pri=true ifindex=3000027 name=Downstream 1/2/3 freq=723000000
channel chanid=13 pri=true ifindex=3000028 name=Downstream 1/3/0 freq=729000000
channel chanid=14 pri=true ifindex=3000029 name=Downstream 1/3/1 freq=735000000
channel chanid=15 pri=true ifindex=3000030 name=Downstream 1/3/2 freq=741000000
channel chanid=16 pri=true ifindex=3000031 name=Downstream 1/3/3 freq=747000000
channel chanid=1 pri=false ifindex=5000256 name=Logical Upstream Channel 4/0.0/0 freq=36800000
channel chanid=2 pri=false ifindex=5000258 name=Logical Upstream Channel 4/0.1/0 freq=40000000
channel chanid=3 pri=false ifindex=5000260 name=Logical Upstream Channel 4/1.0/0 freq=36800000
channel chanid=4 pri=false ifindex=5000262 name=Logical Upstream Channel 4/1.1/0 freq=40000000
channel chanid=5 pri=false ifindex=5000264 name=Logical Upstream Channel 4/2.0/0 freq=36800000
channel chanid=6 pri=false ifindex=5000266 name=Logical Upstream Channel 4/2.1/0 freq=40000000
channel chanid=7 pri=false ifindex=5000268 name=Logical Upstream Channel 4/3.0/0 freq=30400000
channel chanid=8 pri=false ifindex=5000270 name=Logical Upstream Channel 4/3.1/0 freq=33600000
channel chanid=9 pri=false ifindex=5000272 name=Logical Upstream Channel 4/4.0/0 freq=36800000
channel chanid=10 pri=false ifindex=5000274 name=Logical Upstream Channel 4/4.1/0 freq=40000000
channel chanid=11 pri=false ifindex=5000276 name=Logical Upstream Channel 4/5.0/0 freq=36800000
channel chanid=12 pri=false ifindex=5000278 name=Logical Upstream Channel 4/5.1/0 freq=40000000
channel chanid=13 pri=false ifindex=5000280 name=Logical Upstream Channel 4/6.0/0 freq=36800000
channel chanid=14 pri=false ifindex=5000282 name=Logical Upstream Channel 4/6.1/0 freq=40000000
channel chanid=15 pri=false ifindex=5000284 name=Logical Upstream Channel 4/7.0/0 freq=36800000
channel chanid=16 pri=false ifindex=5000286 name=Logical Upstream Channel 4/7.1/0 freq=40000000
Upstreams
itf id freq width mp modulation interface
5000192 1 36800000 3200000 2 qpsk up.3-0.0-0 up
5000194 2 40000000 3200000 2 qpsk up.3-0.1-0 up
5000196 3 36800000 3200000 1 qpsk up.3-1.0-0 up
5000198 4 40000000 3200000 1 qpsk up.3-1.1-0 up
5000200 5 36800000 3200000 2 qpsk up.3-2.0-0 up
5000202 6 40000000 3200000 2 qpsk up.3-2.1-0 up
5000204 7 36800000 3200000 1 qpsk up.3-3.0-0 up
5000206 8 40000000 3200000 2 qpsk up.3-3.1-0 up
5000208 1 36800000 3200000 2 qpsk up.3-4.0-0 up
5000210 2 40000000 3200000 2 qpsk up.3-4.1-0 up
5000212 3 36800000 3200000 2 qpsk up.3-5.0-0 up
5000214 4 40000000 3200000 2 qpsk up.3-5.1-0 up
5000216 5 36800000 3200000 2 qpsk up.3-6.0-0 up
5000218 6 40000000 3200000 2 qpsk up.3-6.1-0 up
5000220 7 36800000 3200000 2 qpsk up.3-7.0-0 up
5000222 8 40000000 3200000 2 qpsk up.3-7.1-0 up
5000256 1 36800000 3200000 2 qpsk up.4-0.0-0 up
5000258 2 40000000 3200000 2 qpsk up.4-0.1-0 up
5000260 3 36800000 3200000 2 qpsk up.4-1.0-0 up
5000262 4 40000000 3200000 2 qpsk up.4-1.1-0 up
5000264 5 36800000 3200000 2 qpsk up.4-2.0-0 up
5000266 6 40000000 3200000 2 qpsk up.4-2.1-0 up
5000268 7 30400000 3200000 2 qpsk up.4-3.0-0 up
5000270 8 33600000 3200000 2 qpsk up.4-3.1-0 up
5000272 9 36800000 3200000 2 qpsk up.4-4.0-0 up
5000274 10 40000000 3200000 2 qpsk up.4-4.1-0 up
5000276 11 36800000 3200000 2 qpsk up.4-5.0-0 up
5000278 12 40000000 3200000 2 qpsk up.4-5.1-0 up
5000280 13 36800000 3200000 2 qpsk up.4-6.0-0 up
5000282 14 40000000 3200000 2 qpsk up.4-6.1-0 up
5000284 15 36800000 3200000 2 qpsk up.4-7.0-0 up
5000286 16 40000000 3200000 2 qpsk up.4-7.1-0 up
5000320 1 36800000 3200000 2 qpsk up.5-0-0 up
5000324 2 40000000 3200000 2 qpsk up.5-1-0 up
5000328 3 36800000 3200000 2 qpsk up.5-2-0 up
5000332 4 40000000 3200000 2 qpsk up.5-3-0 up
5000336 5 36800000 3200000 2 qpsk up.5-4-0 up
5000340 6 40000000 3200000 2 qpsk up.5-5-0 up
5000344 7 36800000 3200000 2 qpsk up.5-6-0 up
5000348 8 40000000 3200000 2 qpsk up.5-7-0 up
Downstreams
itf id freq modulation pow interface
3000000 1 657000000 qam256 44.0 dn.0-0-0 up
3000001 2 663000000 qam256 44.0 dn.0-0-1 up
3000002 3 669000000 qam256 44.0 dn.0-0-2 up
3000003 4 675000000 qam256 44.0 dn.0-0-3 up
3000004 5 681000000 qam256 44.0 dn.0-1-0 up
3000005 6 687000000 qam256 44.0 dn.0-1-1 up
3000006 7 693000000 qam256 44.0 dn.0-1-2 up
3000007 8 699000000 qam256 44.0 dn.0-1-3 up
3000008 1 657000000 qam256 44.0 dn.0-2-0 up
3000009 2 663000000 qam256 44.0 dn.0-2-1 up
3000010 3 669000000 qam256 44.0 dn.0-2-2 up
3000011 4 675000000 qam256 44.0 dn.0-2-3 up
3000012 5 681000000 qam256 44.0 dn.0-3-0 up
3000013 6 687000000 qam256 44.0 dn.0-3-1 up
3000014 7 693000000 qam256 44.0 dn.0-3-2 up
3000015 8 699000000 qam256 44.0 dn.0-3-3 up
3000016 1 657000000 qam256 44.0 dn.1-0-0 up
3000017 2 663000000 qam256 44.0 dn.1-0-1 up
3000018 3 669000000 qam256 44.0 dn.1-0-2 up
3000019 4 675000000 qam256 44.0 dn.1-0-3 up
3000020 5 681000000 qam256 44.0 dn.1-1-0 up
3000021 6 687000000 qam256 44.0 dn.1-1-1 up
3000022 7 693000000 qam256 44.0 dn.1-1-2 up
3000023 8 699000000 qam256 44.0 dn.1-1-3 up
3000024 9 705000000 qam256 44.0 dn.1-2-0 up
3000025 10 711000000 qam256 44.0 dn.1-2-1 up
3000026 11 717000000 qam256 44.0 dn.1-2-2 up
3000027 12 723000000 qam256 44.0 dn.1-2-3 up
3000028 13 729000000 qam256 44.0 dn.1-3-0 up
3000029 14 735000000 qam256 44.0 dn.1-3-1 up
3000030 15 741000000 qam256 44.0 dn.1-3-2 up
3000031 16 747000000 qam256 44.0 dn.1-3-3 up
3000032 1 657000000 qam256 44.0 dn.2-0-0 up
3000033 2 663000000 qam256 44.0 dn.2-0-1 up
3000034 3 669000000 qam256 44.0 dn.2-0-2 up
3000035 4 675000000 qam256 44.0 dn.2-0-3 up
3000036 5 681000000 qam256 44.0 dn.2-1-0 up
3000037 6 687000000 qam256 44.0 dn.2-1-1 up
3000038 7 693000000 qam256 44.0 dn.2-1-2 up
3000039 8 699000000 qam256 44.0 dn.2-1-3 up
3000040 9 705000000 qam256 44.0 dn.2-2-0 up
3000041 10 711000000 qam256 44.0 dn.2-2-1 up
3000042 11 717000000 qam256 44.0 dn.2-2-2 up
3000043 12 723000000 qam256 44.0 dn.2-2-3 up
3000044 13 729000000 qam256 44.0 dn.2-3-0 up
3000045 14 735000000 qam256 44.0 dn.2-3-1 up
3000046 15 741000000 qam256 44.0 dn.2-3-2 up
3000047 16 747000000 qam256 44.0 dn.2-3-3 up
Fiber Nodes
SG01 - (map: [(2000001, 257, 8, 2)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[256] chans={1, 2})
SG02 - (map: [(2000001, 258, 8, 4)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[257] chans={3, 4})
SG03 - (map: [(2000001, 259, 8, 6)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[258] chans={5, 6})
SG04 - (map: [(2000001, 260, 8, 8)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[259] chans={8, 7})
SG05 - (map: [(2000002, 517, 37, 10)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[256] chans={1, 2})
SG06 - (map: [(2000002, 518, 37, 12)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[257] chans={3, 4})
SG07 - (map: [(2000002, 519, 37, 14)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[258] chans={5, 6})
SG08 - (map: [(2000002, 520, 37, 16)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[259] chans={8, 7})
SG09 - (map: [(2000003, 777, 74, 18)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[256] chans={1, 2})
SG10 - (map: [(2000003, 778, 74, 20)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[257] chans={3, 4})
SG11 - (map: [(2000003, 779, 74, 22)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[258] chans={5, 6})
SG12 - (map: [(2000003, 780, 74, 26)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[259] chans={8, 9, 10, 7})
SG13 - (map: [(2000003, 781, 74, 0)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[] chans=set())
SG14 - (map: [(2000003, 782, 74, 28)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[260] chans={11, 12})
SG15 - (map: [(2000003, 783, 74, 30)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[261] chans={13, 14})
SG16 - (map: [(2000003, 784, 74, 32)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[262] chans={16, 15})
SG17 - (map: [(2000004, 1041, 36, 34)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[256] chans={1, 2})
SG18 - (map: [(2000004, 1042, 36, 36)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[257] chans={3, 4})
SG19 - (map: [(2000004, 1043, 36, 38)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[258] chans={5, 6})
SG20 - (map: [(2000004, 1044, 36, 40)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16} / US: chanids=[259] chans={8, 7})
docsis cmtss print
It's an alias of docsis cmts print.
docsis cm [cmtsID] print
Allows you to view all the information of a specific header (nodes, frequencies, etc.).
ispadmin@lab3.phicus.es > docsis cm cmtsCasa print
CMTS: cmtsCasa
uptime: None
MD: ix=77 name=catv-mac.1
Channels:
channel chanid=1 pri=true ifindex=141 name=Downstream 0/0/0 freq=464000000
channel chanid=2 pri=true ifindex=142 name=Downstream 0/0/1 freq=472000000
channel chanid=3 pri=true ifindex=143 name=Downstream 0/1/0 freq=480000000
channel chanid=4 pri=true ifindex=144 name=Downstream 0/1/1 freq=488000000
channel chanid=5 pri=true ifindex=145 name=Downstream 0/2/0 freq=432000000
channel chanid=6 pri=true ifindex=146 name=Downstream 0/2/1 freq=440000000
channel chanid=7 pri=true ifindex=147 name=Downstream 0/3/0 freq=448000000
channel chanid=8 pri=true ifindex=148 name=Downstream 0/3/1 freq=456000000
channel chanid=1 pri=false ifindex=397 name=Logical Upstream Channel 1/0/0 freq=54500000
channel chanid=2 pri=false ifindex=398 name=Logical Upstream Channel 1/1/0 freq=48000000
channel chanid=3 pri=false ifindex=399 name=Logical Upstream Channel 1/2/0 freq=54500000
channel chanid=4 pri=false ifindex=400 name=Logical Upstream Channel 1/3/0 freq=48000000
channel chanid=5 pri=false ifindex=401 name=Logical Upstream Channel 1/4/0 freq=54500000
channel chanid=6 pri=false ifindex=402 name=Logical Upstream Channel 1/5/0 freq=61000000
channel chanid=7 pri=false ifindex=403 name=Logical Upstream Channel 1/6/0 freq=41500000
channel chanid=8 pri=false ifindex=404 name=Logical Upstream Channel 1/7/0 freq=35000000
Upstreams
itf id freq width mp modulation interface
397 1 54500000 3200000 2 qpsk up.1-0-0 up
398 2 48000000 3200000 2 qpsk up.1-1-0 up
399 3 54500000 3200000 2 qpsk up.1-2-0 up
400 4 48000000 6400000 6 qpsk up.1-3-0 up
401 5 54500000 6400000 6 qpsk up.1-4-0 up
402 6 61000000 3200000 2 qpsk up.1-5-0 up
403 7 41500000 3200000 2 qpsk up.1-6-0 up
404 8 35000000 3200000 2 qpsk up.1-7-0 up
Downstreams
itf id freq modulation pow interface
141 1 464000000 qam256 57.0 dn.0-0-0 up
142 2 472000000 qam256 57.0 dn.0-0-1 up
143 3 480000000 qam256 57.0 dn.0-1-0 up
144 4 488000000 qam256 57.0 dn.0-1-1 up
145 5 432000000 qam256 57.0 dn.0-2-0 up
146 6 440000000 qam256 57.0 dn.0-2-1 up
147 7 448000000 qam256 57.0 dn.0-3-0 up
148 8 456000000 qam256 57.0 dn.0-3-1 up
Fiber Nodes
nodo1 - (map: [(77, 1, 1, 1)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[256] chans={1, 2})
nodo2 - (map: [(77, 2, 1, 2)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[257] chans={8, 5, 6, 7})
nodowifi - (map: [(77, 3, 1, 3)]) (DS: chanids=[256] chans={1, 2, 3, 4, 5, 6, 7, 8} / US: chanids=[258] chans={3, 4})
docsis cm mac [MAC]
Allows you to view the information of a specific cable modem through its MAC.
cmts : cmtsCasa id: 29 state: online
fibernode: nodo1 md: catv-mac.1 ids : 77/1/7/1
mac : 00:15:96:cb:83:4d ip: 10.0.32.48 poll : success
file : uptime: 8388100
Bandwidth: 10.70 kbps down / 8.63 kbps up
Reg tags : cmtsCasa,catv-mac.1,nodo1,dn.0-3-0,up.1-0-0
QoS : OK dncorr=0.00% dnko=0.00% upcorr=0.00% upko=0.00%
Downstream : OK dnatt=52.9dB dnrx=4.1dBm dnsnr=41.0dB
Upstream : OK upatt=39.8dB uptx=45.0dBm upsnr=38.2dB
Docsis : OK cmtsinvups=0 cminvups=0
DOWNSTREAM
- id itf-name freq width mod rx att snr corr ko
- 4.1 52.9 41.0 0.00 0.00
- 0 dn.0-3-0 448MHz 8MHz qam256 4.1 52.9 41.0 0.00 0.00
UPSTREAM
- id itf-name freq width mod tx att snr corr ko
- 45.0 39.8 38.2 0.00 0.00
- 0 up.1-0-0 54500KHz 3200KHz qpsk 45.0 39.8 38.2 0.00 0.00
SYSTEM DESCRIPTION
DESC ARRIS Euro-DOCSIS 2.0 / SIP 2.0 Touchstone Telephony Modem
HW_REV 04
VENDOR Arris Interactive, L.L.C.
BOOTR 5.01
SW_REV 6.1.129T.EURO.SIP
MODEL WTM552B
cm.downstream_sfs...
[20000000]
docsis cm reset [MAC]
Allows you to restart a cable modem through its
ispadmin@lab.phicus.es > docsis cm reset 001596cb834d
WiMAX Tools
wimax ap [AP_ID]
ispadmin@lab3.phicus.es > wimax ap AP-Casa
ap short SSID freq bw dist n dnbw upbw at etc
AP-LAB CMBM ssid 5200 20 9999 24 0.0 0.0 2360.1 497 days, 2:27:52 ----> -
====================================================================================================
aphost : AP-LAB address : X.X.X.X
uptime : 42949672 sysdescr: Linux Rueda_CM #1 Wed Jul 7 15:20:45 UTC 2021 mips
cls : MCambiumBaseStation
freq : 5200 chanbw : 20
distance: 9999 txpower : 30.0
model : ePMP2000 version : 4.6.1
runmodel: None
short : CMBM dnrate : 144.4
24 STAs base->cpe cpe->base
cpe mac rgid dista / rate rx snr bw / rate tx rx snr bw /
- 000456e08169 1 2278 / 86.7 -70.0 26.0 8.5K / 86.7 0.0 -70.0 20.0 143.6K / dnrate dnmcs=12 20 400 -> dnrate=86.7
- 000456e0871d 2 2428 / 144.4 -53.0 42.0 1.2K / 57.8 0.0 -56.0 38.0 1.1K / dnrate dnmcs=15 20 400 -> dnrate=144.4
cpe2320 000456e7ba27 3 2728 / 115.6 -60.0 36.0 1.8M / 86.7 0.0 -57.0 34.0 245.9K / dnrate dnmcs=13 20 400 -> dnrate=115.6
cpe2268 000456e0ac7d 4 2728 / 65.0 -56.0 39.0 1.5K / 115.6 0.0 -60.0 30.0 1.8K / dnrate dnmcs=6 20 400 -> dnrate=65.0
- 000456e101a9 5 1978 / 57.8 -68.0 27.0 562.9 / 57.8 0.0 -69.0 20.0 830.9 / dnrate dnmcs=11 20 400 -> dnrate=57.8
cpe2333 000456e026af 6 2278 / 130.0 -56.0 39.0 690.5M / 72.2 0.0 -56.0 33.0 294.3M / dnrate dnmcs=14 20 400 -> dnrate=130.0
- 000456e42331 7 2728 / 57.8 -57.0 38.0 0.0 / 144.4 0.0 -62.0 28.0 0.0 / dnrate dnmcs=11 20 400 -> dnrate=57.8
- 000456f6fabd 8 2728 / 86.7 -65.0 30.0 7.8K / 115.6 0.0 -59.0 23.0 151.4K / dnrate dnmcs=12 20 400 -> dnrate=86.7
- 000456e3e473 9 2848 / 86.7 -62.0 33.0 534.2 / 57.8 0.0 -63.0 26.0 617.0 / dnrate dnmcs=12 20 400 -> dnrate=86.7
cpe2331 000456e43303 10 2578 / 86.7 -70.0 27.0 45.0K / 86.7 0.0 -64.0 20.0 150.2K / dnrate dnmcs=12 20 400 -> dnrate=86.7
cpe2211 000456f76e2d 11 2728 / 144.4 -57.0 39.0 800.8K / 144.4 0.0 -55.0 29.0 432.7K / dnrate dnmcs=15 20 400 -> dnrate=144.4
- 000456e08c5d 12 2728 / 43.3 -72.0 24.0 662.7 / 43.3 0.0 -66.0 26.0 830.9 / dnrate dnmcs=4 20 400 -> dnrate=43.3
cpe2308 000456e1160f 13 2428 / 144.4 -57.0 39.0 36.6K / 144.4 0.0 -56.0 29.0 143.2K / dnrate dnmcs=15 20 400 -> dnrate=144.4
- 000456e11921 14 2428 / 130.0 -58.0 38.0 8.5 / 115.6 0.0 -55.0 37.0 1.3K / dnrate dnmcs=14 20 400 -> dnrate=130.0
cpe2239 000456e09823 15 2428 / 86.7 -55.0 41.0 1.4M / 144.4 0.0 -55.0 29.0 216.2K / dnrate dnmcs=12 20 400 -> dnrate=86.7
- 000456e07f9d 16 2698 / 86.7 -55.0 42.0 1.6M / 144.4 0.0 -58.0 34.0 67.7K / dnrate dnmcs=12 20 400 -> dnrate=86.7
- 000456f53d15 17 479 / 57.8 -68.0 28.0 387.1 / 86.7 0.0 -61.0 25.0 635.6 / dnrate dnmcs=11 20 400 -> dnrate=57.8
- 000456e3dc8f 18 2428 / 144.4 -57.0 40.0 8.3K / 144.4 0.0 -58.0 29.0 150.1K / dnrate dnmcs=15 20 400 -> dnrate=144.4
- 000456f58bdd 19 2488 / 115.6 -57.0 40.0 977.0K / 144.4 0.0 -59.0 24.0 246.3K / dnrate dnmcs=13 20 400 -> dnrate=115.6
cpe2292 000456e084dd 20 2728 / 130.0 -59.0 34.0 2.6M / 72.2 0.0 -56.0 29.0 55.2K / dnrate dnmcs=14 20 400 -> dnrate=130.0
cpe2286 000456e08c6f 21 2728 / 115.6 -62.0 35.0 916.4K / 144.4 0.0 -57.0 24.0 589.2K / dnrate dnmcs=13 20 400 -> dnrate=115.6
- 58c17a497e19 22 2638 / 21.7 -62.0 35.0 660.1 / 57.8 0.0 -64.0 30.0 830.9 / dnrate dnmcs=2 20 400 -> dnrate=21.7
- 000456f0aeb3 23 2788 / 144.4 -60.0 36.0 11.6K / 144.4 0.0 -56.0 26.0 59.0K / dnrate dnmcs=15 20 400 -> dnrate=144.4
- 000456e4235d 24 2428 / 130.0 -66.0 29.0 13.1K / 115.6 0.0 -62.0 27.0 144.1K / dnrate dnmcs=14 20 400 -> dnrate=130.0
BW downlink 700.8M uplink 297.1M total 997.9M (own 0.0+ 0.0= 0.0)
% AIR 2360.1
wimax aps stats print
Shows the condition of the network's APs.
ispadmin@lab3.phicus.es > wimax aps stats print
[2023-01-03 11:35:40 CET] WARNING: [libkrill.ssh.myssh/246305] _poll is_host_up AP-LAB-01 ('172.16.142.101', 22) is DOWN (Unable to connect to 172.16.142.101: timed out)
ap short SSID freq bw dist n dnbw upbw at etc
FAIL:
- AP-LAB-01 : ["transport ('X.X.X.X', 22) is down"]
wimax update host [AP_ID]
Updates the firmware version of the Antenna using the device name.
ispadmin@lab3.phicus.es > wimax update host AP-LAB-01
wimax update ip [X.X.X.X]
Updates the firmware version of the Antenna using the device IP.
ispadmin@lab3.phicus.es > wimax update ip x.x.x.x
wimax update range [X.X.X.X/25]
Updates the firmware version of the Antenna using a certain IP range.
ispadmin@lab3.phicus.es > wimax update range x.x.x.x/25
Radius Tools
radius sessions print
It allows us to see al the active pppoe sessions.
ispadmin@lab3.phicus.es > radius sessions print
CPE Username Station ID IP Address
demotracer b4-75-0e-98-ce-d0 X.X.X.X
AR04005@LAB3 0c-80-63-a5-1d-f1 X.X.X.X
480098@LAB1 e8-48-b8-9f-b9-05 X.X.X.X
comedifi@LAB2 c4-ad-34-15-0e-81 X.X.X.X
TIP
If we want to filter the pppoe sessions, the commands can be linked using:
ispadmin@lab3.phicus.es > radius sessions print | include dosmarestracer
dosmarestracer b4-75-0e-98-ce-d0 X.X.X.X
radius deauth [PPPOE_USERNAME]
It allows us to end a PPPoE session.
ispadmin@lab3.phicus.es > radius deauth F741
TV Tools
tv edfa [EDFA_ID] info
Shows the TV devices' (Edfa) information.
ispadmin@lab3.phicus.es > tv edfa TEST-STEVE info
=== EDFA INFO ===
OUTPUT POWER 38.5 dBm
EACH OUTPUT POWER 20.5 dBm
INPUT POWER -2.6 dBm
UNIT TEMP 25.0 C
BIAS1 408.0 mA
BIAS2 5938.0 mA
Laser Temp 25.0 C
=== ALARM INFO ===
OUTPUT POWER (Enabled)
HIHI: 60.00 dBm
HI: 50.00 dBm
LO: 30.00 dBm
LOLO: 0.00 dBm
EACH OUTPUT POWER (Enabled)
HIHI: 30.00 dBm
HI: 26.00 dBm
LO: 18.00 dBm
LOLO: 0.00 dBm
INPUT POWER (Enabled)
HIHI: 10.00 dBm
HI: 9.00 dBm
LO: -9.00 dBm
LOLO: -10.00 dBm
UNIT TEMP (Enabled)
HIHI: 55.00 C
HI: 40.00 C
LO: 0.00 C
LOLO: -5.00 C
BIAS1 (Enabled)
HIHI: 9000.00 mA
HI: 7500.00 mA
LO: 100.00 mA
LOLO: -10.00 mA
BIAS2 (Enabled)
HIHI: 9000.00 mA
HI: 7500.00 mA
LO: 100.00 mA
LOLO: -10.00 mA
Laser Temp (Enabled)
HIHI: 30.00 C
HI: 28.00 C
LO: 0.00 C
LOLO: -5.00 C
tv edfa [EDFA_ID] reboot
Restarts the TV device (Edfa).
ispadmin@lab3.phicus.es > tv edfa TEST-STEVE reboot
tv edfa [EDFA_ID] set input [HI|HIHI|LO|LOLO]
It allows us to change the alarm values for the incoming power (using dBm).
ispadmin@lab3.phicus.es > tv edfa TEST-STEVE set input HI 9
tv edfa [EDFA_ID] set output [HI|HIHI|LO|LOLO]
It allows us to change the alarm values for the main output source (using dBm).
ispadmin@lab3.phicus.es > tv edfa TEST-STEVE set output HIHI 60
tv edfa [EDFA_ID] set power [HI|HIHI|LO|LOLO]
It allows us to change the alarm values for any output source (using dBm).
ispadmin@lab3.phicus.es > tv edfa TEST-STEVE set power LOLO 0
tv edfa [EDFA_ID] set laser-temp [HI|HIHI|LO|LOLO]
It allows us to change the alarm value for the laser temperature (using ºC).
ispadmin@lab3.phicus.es > tv edfa TEST-STEVE set laser-temp LO 0
tv edfa [EDFA_ID] set unit-temp [HI|HIHI|LO|LOLO]
It allows us to change the alarm values for the device temperature (using ºC).
ispadmin@lab3.phicus.es > tv edfa TEST-STEVE set unit-temp HI 40
Asterisk commands
Asterisk summary
asterisk database show
Peers summary and registration info
asterisk sip show peers
Forwarded calls
Add forwarding
asterisk calling-features ddi OriginNumber put call-forwarding value DestinationNumber
Add forwarding with no answer
asterisk calling-features ddi OriginNumber put call-forwarding-no-answer value DestinationNumber
Add forwarding when busy
asterisk calling-features ddi OriginNumber put call-forwarding-on-busy value DestinationNumber
Add forwarding when unavailable
asterisk calling-features ddi OriginNumber put call-forwarding-when-unavailable value DestinationNumber
Delete forwarding
asterisk calling-features ddi OriginNumber del call-forwarding
asterisk calling-features ddi OriginNumber del call-forwarding-no-answer
asterisk calling-features ddi OriginNumber del call-forwarding-on-busy
asterisk calling-features ddi OriginNumber del call-forwarding-when-unavailable
PBX extensions commands
Add forwarding
asterisk calling-features pbx PBXNumber extension Extension put call-forwarding value DestinationNumber
Add forwarding when no answer
asterisk calling-features PBXNumber extension Extension put call-forwarding-no-answer value DestinationNumber
Add forwarding when busy
asterisk calling-features PBXNumber extension Extension put call-forwarding-on-busy value DestinationNumber
Add forwarding when unavailable
asterisk calling-features PBXNumber extension Extension put call-forwarding-when-unavailable value DestinationNumber
Delete forwarding
asterisk calling-features PBXNumber extension Extension del call-forwarding
asterisk calling-features PBXNumber extension Extension del call-forwarding-no-answer
asterisk calling-features PBXNumber extension Extension del call-forwarding-on-busy
asterisk calling-features PBXNumber extension Extension del call-forwarding-when-unavailable
Other commands
ssh [HOST_NAME]
It allows a ssh connection with the device's name.
ispadmin@lab3.phicus.es > ssh SW-EDGE-LAB
ispadmin@sw-edge-lab's password:
ssh [IP]
It allows a ssh connection with the device's IP.
ispadmin@lab3.phicus.es > ssh 172.16.142.10
ispadmin@172.16.142.10's password:
ping [IP]
It allows us to check the connectivity with a network's device.
ispadmin@lab3.phicus.es > ping 172.16.142.10
PING 172.16.142.10 (172.16.142.10) 56(84) bytes of data.
64 bytes from 172.16.142.10: icmp_seq=1 ttl=63 time=26.8 ms
64 bytes from 172.16.142.10: icmp_seq=2 ttl=63 time=26.6 ms
64 bytes from 172.16.142.10: icmp_seq=3 ttl=63 time=26.7 ms
64 bytes from 172.16.142.10: icmp_seq=4 ttl=63 time=26.6 ms
^C
--- 172.16.142.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3005ms
rtt min/avg/max/mdev = 26.576/26.673/26.750/0.070 ms
traceroute [IP]
It allows us to see the path of the packets from the origin host to the destination host.
ispadmin@lab3.phicus.es > traceroute 172.16.142.10
traceroute to 172.16.142.10 (172.16.142.10), 30 hops max, 60 byte packets
1 _gateway (10.166.110.222) 25.233 ms 25.222 ms 25.235 ms
2 SW-EDGE-LAB (172.16.142.10) 29.396 ms 31.397 ms 31.521 ms
telnet [IP]
It allows the connection to a device using the telnet protocol.
ispadmin@lab3.phicus.es > telnet 172.16.142.11
Trying 172.16.142.11...
Connected to 172.16.142.11.
Escape character is '^]'.
>>User name:
exit
Used to end the ISP-CLI tool session of the Krill's server.
ispadmin@lab3.phicus.es > exit
Exit
root@localhost:~#
